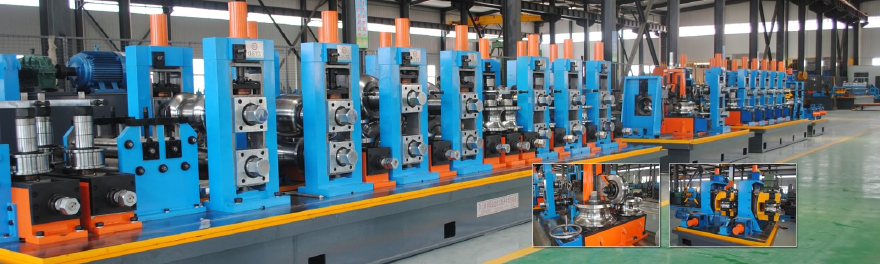

HG76 High precision tube machinery PLC control Metal Stainless Steel Pipe Production Line Welded Tube Making Machine

          HG76 High precision tube machinery PLC control Metal Stainless Steel Pipe Production Line Welded Tube Making Machine is designed to produce welded pipes of 32~89mm in diameter and 0.8~4.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line’s each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.

1,The production process:

Raw material (strip) →feeding→Cutting and Welding →Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → Packing → Storage

2,Adapt materials:

 Hot rolled or cold rolled steel strip

 Material : Low carbon steel and low alloy constructional steel

δs≤345Mpa  δb≤610Mpa

3,Processing steel pipe size range:

  (1)Processing range:Round pipe 32-89mm.

                       Square&Rectangular pipe  20x20—70x70

  (2)Thickness of Round pipe :0.7-4.0mm

       Thickness of Square&Rectangular pipe :0.7-3.5mm

4,Installed capacity: 500KVA

5,Water consumption: 40m3/h

6,Solid-state high-frequency Welder:250KW

7,Workshop Request:length, width and height  60-80m X 12m X 5m

8,Forming speed:80-120m/min

company profile

As a leading and professional manufacturer of welded pipe forming machinery and related production in china, Hebei Tengtian welded pipe equipment manufacturing Co., Ltd. Has 16 year’s experience in ERW pipe making field ,Tengtian factory covers 50000square meters and has advanced equipments We has introduced advanced modern manager system to guarantee the production quality.

With a long time experience we have more profound understand toward user’s need.

With enterprise grow up we can supply all range of welded pipe forming machinery from single machine to completed pipe mill production line,we also supply “turnkey project” system solution for our customers from all over the world ,including to upgrade old system ,completed after-sale service,test running and worker training service .

Insisting on the principal of “ Quality first, Customer first” Our products are selling well in south America, Southeast Asia, Africa, Australia, Russia,South Korea etc.

We welcome all customer visit our factory , we will offer to our clients the best suitable technical solution and best reasonable price.
